AACS110

AC Thyristor Triac power switch

AACS110 Datasheet (256.43 KB)

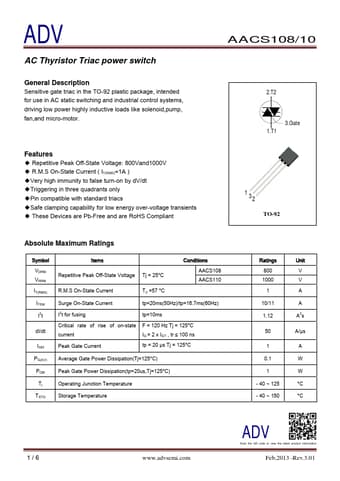

Preview of AACS110 PDF Datasheet

Datasheet Details

Part number:

AACS110

Manufacturer:

ADV

File Size:

256.43 KB

Description:

Ac thyristor triac power switch

AACS110 Features

* Repetitive Peak Off-State Voltage: 800Vand1000V

* R.M.S On-State Current ( IT(RMS)=1A )

* Very high immunity to false turn-on by dV/dt

* Triggering in three quadrants only

* Pin compatible with standard triacs

* Safe clamping capability for low energy over-voltage transients
