AACT212D, AACT210D Datasheet - ADV

AACT212D AC Thyristor Triac power switch

Available either in through-hole or surface-mount packages, the AACT2 suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation,induction motor starting circuits or for phase control operation in light dimmers,motor sp.

AACT212D Features

* Repetitive Peak Off-State Voltage: 1000Vand1200V

* R.M.S On-State Current ( IT(RMS)= 2A )

* Very high immunity to false turn-on by dV/dt

* Triggering in three quadrants only

* Pin compatible with standard triacs

* Safe clamping capability for low energy over-voltage transients

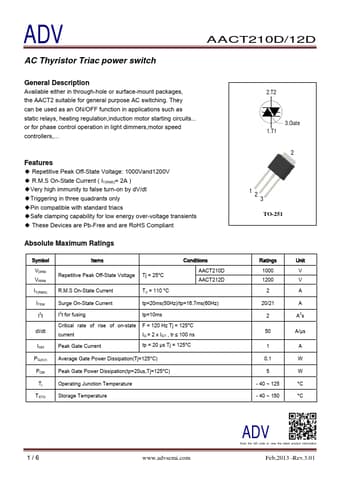

AACT210D-ADV.pdf

AACT212D Datasheet Preview — This datasheet PDF includes multiple part numbers: AACT212D, AACT210D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AACT212D, AACT210D

Manufacturer:

ADV

File Size:

254.45 KB

Description:

Ac thyristor triac power switch.

Note:

This datasheet PDF includes multiple part numbers: AACT212D, AACT210D.
Please refer to the document for exact specifications by model.
