AIS25C60H

3 Quadrants Triacs

AIS25C60H Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 25A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant

* Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC ) 1 23 TO-3P Isolated Absolute Maximum Rating

AIS25C60H General Description

High current density due to mesa technology .the AIS25C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC in.

AIS25C60H Datasheet (261.36 KB)

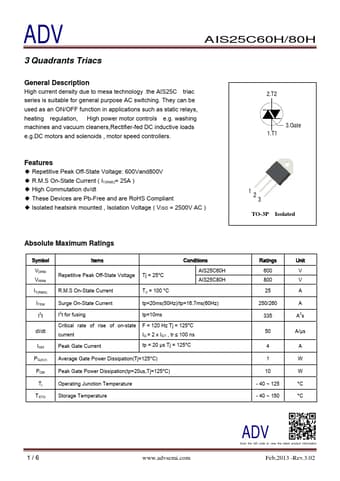

Preview of AIS25C60H PDF

Datasheet Details

Part number:

AIS25C60H

Manufacturer:

ADV

File Size:

261.36 KB

Description:

3 quadrants triacs.
