AIS8CH80, AIS8CH60 3 Quadrants High temperature Triacs

AIS8CH80 Description

ADV 3 Quadrants High temperature Triacs AIS8CH60/80 General .
High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

AIS8CH80 Features

* Repetitive Peak Off-State Voltage: 600V/800V
* R. M. S On-State Current ( IT(RMS)= 8 A )
* High Commutation dv/dt
* Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC )
* High junction temperature operating capability
* These Devices are Pb-Free and are RoHS Comp

AIS8CH80 Applications

* such as static relays, heating regulation, High power motor controls e. g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e. g. DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance atgiven

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AIS8CH80, AIS8CH60. Please refer to the document for exact specifications by model.

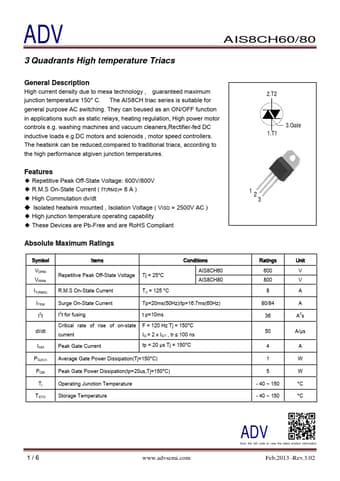

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AIS8CH80, AIS8CH60
Manufacturer
ADV
File Size
289.79 KB
Datasheet
AIS8CH60-ADV.pdf
Description
3 Quadrants High temperature Triacs
Note
This datasheet PDF includes multiple part numbers: AIS8CH80, AIS8CH60.
Please refer to the document for exact specifications by model.
