AIT25C60H - 3 Quadrants Triacs

📥 Download Datasheet

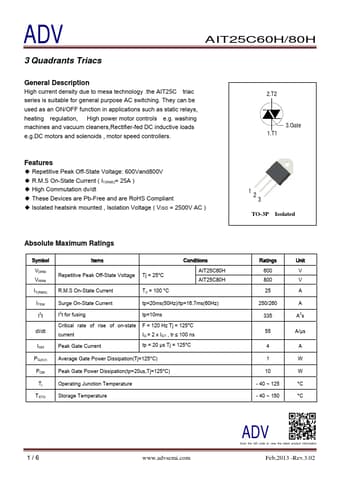

AIT25C60H Datasheet Preview — Preview of AIT25C60H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AIT25C60H
Manufacturer: ADV
File Size: 261.03 KB
Datasheet: AIT25C60H-ADV.pdf
Description: 3 Quadrants Triacs

AIT25C60H Product details

Description

High current density due to mesa technology .the AIT25C triac series is suitable for general purpose AC switching..

Features

Repetitive Peak Off-State Voltage: 600Vand800V.
R. M. S On-State Current ( IT(RMS)= 25A ).
High Commutation dv/dt.
These Devices are Pb-Free and are RoHS Compliant.
Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC ) 1 23 TO-3P Isolated Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current.
