MT3608 - High Efficiency 1.2MHz 2A Step-Up Converter

Datasheet Summary

Description

The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications.

The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height.

Features

  • Integrated 80mΩ Power MOSFET.
  • 2V to 24V Input Voltage.
  • 1.2MHz Fixed Switching Frequency.
  • Internal 4A Switch Current Limit.
  • Adjustable Output Voltage.
  • Internal Compensation.
  • Up to 28V Output Voltage.
  • Automatic Pulse Frequency Modulation Mode at Light Loads.
  • up to 93% Efficiency.
  • Available in a 6-Pin SOT23-6 Package.

📥 Download Datasheet

Datasheet preview – MT3608

Datasheet Details

Part number MT3608
Manufacturer AEROSEMI
File Size 347.15 KB
Description High Efficiency 1.2MHz 2A Step-Up Converter
Datasheet download datasheet MT3608 Datasheet
Additional preview pages of the MT3608 datasheet.

📁 Similar Datasheet

Other Datasheets by AEROSEMI
  • MT3608L - 1.2MHz Current Mode Step-Up Converter
  • MT36291 - High Efficiency 1.2MHz Current Mode Step-Up Converter
  • MT3406 - Synchronous Step-Down Converter
  • MT3410 - 1.5A Synchronous Step-Down Converter
  • MT3410L - Synchronous Step-Down Converter
  • MT3410LB - 1.5MHz Synchronous Step-Down Converter
  • MT3420C - Synchronous Step-Down Converter
  • MT3420SP - 2A Synchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text

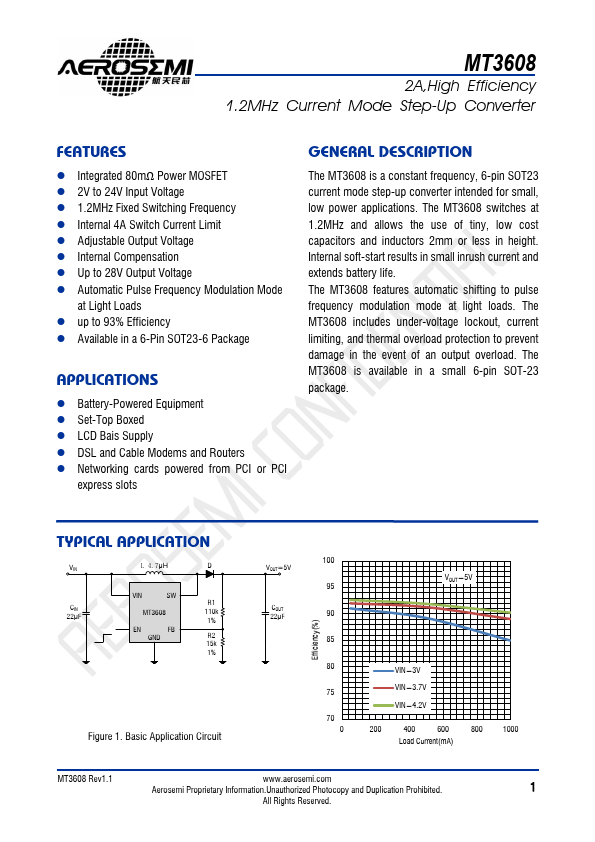

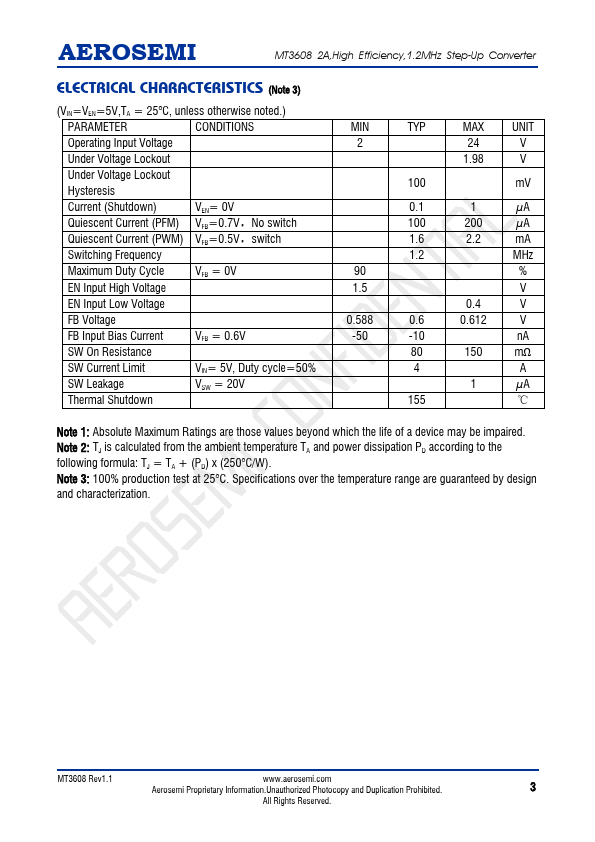

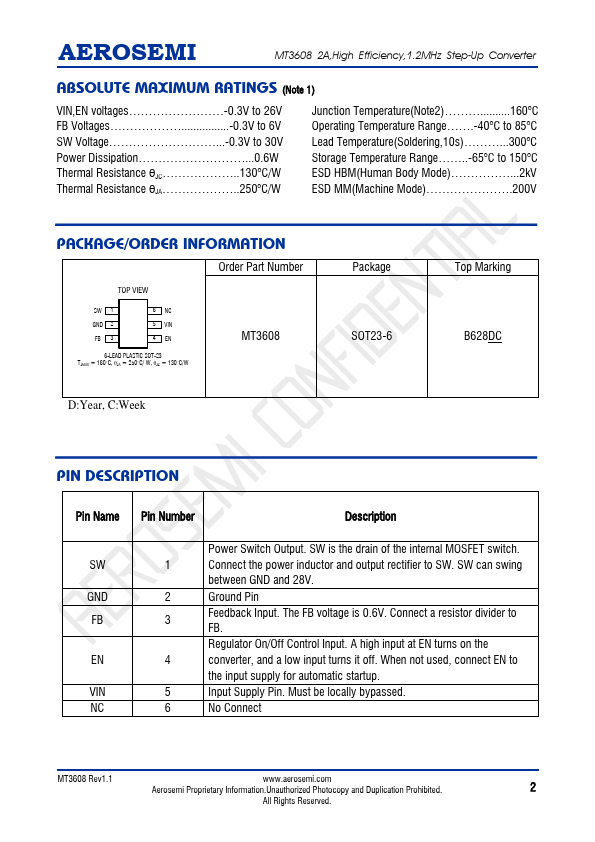

MT3608 2A,High Efficiency 1.2MHz Current Mode Step-Up Converter FEATURES ⚫ Integrated 80mΩ Power MOSFET ⚫ 2V to 24V Input Voltage ⚫ 1.2MHz Fixed Switching Frequency ⚫ Internal 4A Switch Current Limit ⚫ Adjustable Output Voltage ⚫ Internal Compensation ⚫ Up to 28V Output Voltage ⚫ Automatic Pulse Frequency Modulation Mode at Light Loads ⚫ up to 93% Efficiency ⚫ Available in a 6-Pin SOT23-6 Package APPLICATIONS ⚫ Battery-Powered Equipment ⚫ Set-Top Boxed ⚫ LCD Bais Supply ⚫ DSL and Cable Modems and Routers ⚫ Networking cards powered from PCI or PCI express slots GENERAL DESCRIPTION The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.
