AF4056E - 1.1A Lithium Ion Battery Linear Charger

Datasheet Summary

Description

AF4056E is a complete CC/CV linear charger for single cell lithium-ion batteries.

It is specifically designed to work within USB power Specifications.

No external sense resistor is needed and no blocking diode is required due to the internal P-MOSFET architecture.

Features

  • i.

📥 Download Datasheet

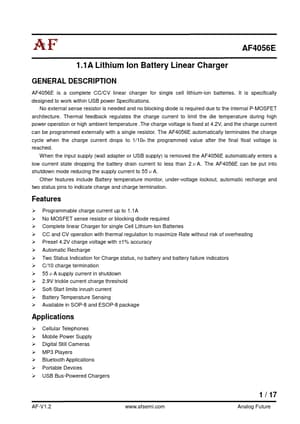

Datasheet preview – AF4056E

Datasheet Details

Part number AF4056E
Manufacturer AFSEMI
File Size 494.46 KB
Description 1.1A Lithium Ion Battery Linear Charger
Datasheet download datasheet AF4056E Datasheet
Additional preview pages of the AF4056E datasheet.

📁 Similar Datasheet

  • AF431 - Programmable Voltage Reference (Programmable output voltage to 20 volts) (AUK corp)
  • AF431 - High Voltage Adjustable Precision Shunt Regulators (Alfa-MOS)
  • AF431N - High Voltage Adjustable Precision Shunt Regulators (Alfa-MOS)
  • AF431XSF - Programmable Voltage Reference (Programmable output voltage to 20 volts) (AUK corp)
  • AF432N - High Voltage Adjustable Precision Shunt Regulators (Alfa-MOS)
  • AF4407P - P-Channel MOSFET (Anachip)
  • AF4409P - P-Channel MOSFET (Anachip)
  • AF4410N - N-Channel MOSFET (Anachip)
  • AF4415P - P-Channel MOSFET (Anachip)
  • AF4502C - P & N-Channel 30-V (D-S) MOSFET (Anachip)
Other Datasheets by AFSEMI
  • AF4054 - 800mA Lithium Ion Battery Linear Charger
  • AF4054B - Linear Li-Ion Battery Charger
  • AF4055 - 800mA Lithium Ion Battery Linear Charger
  • AF4057 - 1.1A Lithium Ion Battery Linear Charger
  • AF4064 - Standalone Linear Li-Ion Battery Charger
  • AF4871A - 1.1W Audio Power Amplifier
  • AF4890 - 1 Watt CLASS-AB Audio Power Amplifier

Full PDF Text Transcription

Click to expand full text
AF4056E 1.1A Lithium Ion Battery Linear Charger GENERAL DESCRIPTION AF4056E is a complete CC/CV linear charger for single cell lithium-ion batteries. It is specifically designed to work within USB power Specifications. No external sense resistor is needed and no blocking diode is required due to the internal P-MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature .The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The AF4056E automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
