AP3603 Datasheet, controller equivalent, AKM

AP3603 Features

  • Controller
  • Input Voltage Range 6.4 to 20V
  • Oscillation Frequency Setting Range 40k to 500kHz(Set by external resistor)
  • 8V Gate Driver for External N-channel MOSFET

PDF File Details

Part number:

AP3603

Manufacturer:

AKM

File Size:

681.21kb

Download:

📄 Datasheet

Description:

High power dual output step-up dc-dc controller. The AP3603 is a dual output step-up DC-DC controller. The output voltage can be set up to 60V by an external feedback resistor. A wid

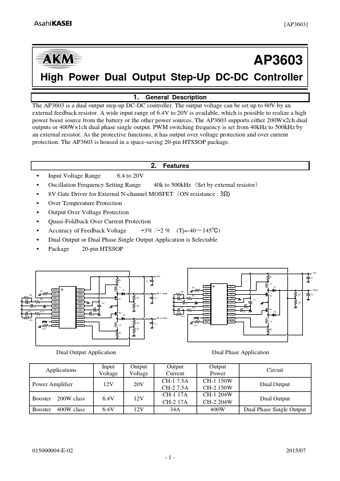

Datasheet Preview: AP3603 📥 Download PDF (681.21kb)
Page 2 of AP3603 Page 3 of AP3603

AP3603 Application

  • Applications Power Amplifier Booster 200W class Booster 400W class Input Voltage 12V 6.4V 6.4V Output Voltage 20V 12V 12V Output Current CH-1 7.5
