A1699

Vibration-Resistant Sensor

A1699 Features

* Integrated IC and capacitor, single overmolded package to reduce external EMI-protection requirements

* Two-wire, pulse-width output protocol

* Highly configurable output protocol options

* Digital output representing target profile

* Speed and directio

A1699 General Description

The A1699 is an optimized Hall-effect integrated circuit (IC) that provides a user-friendly solution for direction detection and true zero-speed, digital ring-magnet sensing. The small package can be easily assembled and used in conjunction with a wide variety of target sensing applications. The IC .

A1699 Datasheet (1.00 MB)

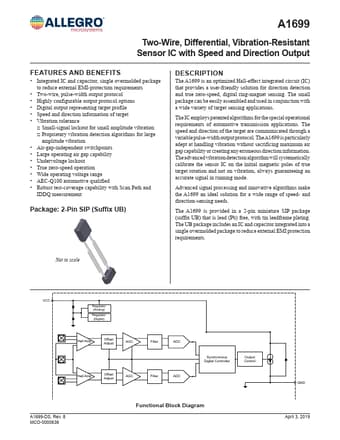

Preview of A1699 PDF

Datasheet Details

Part number:

A1699

Manufacturer:

ALLEGRO

File Size:

1.00 MB

Description:

Vibration-resistant sensor.
