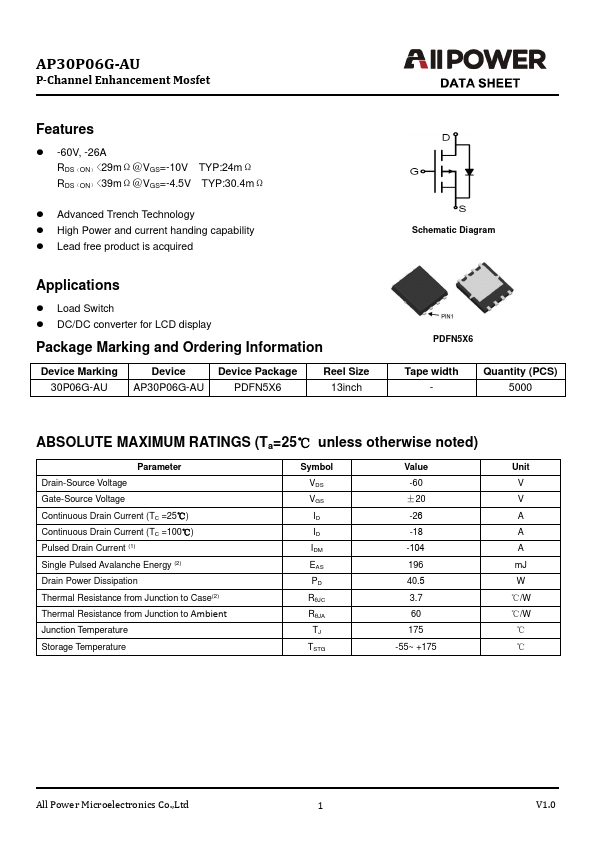

AP30P06G-AU
Features
- -60V, -26A RDS（ON）<29mΩ＠VGS=-10V TYP:24mΩ RDS（ON）<39mΩ＠VGS=-4.5V TYP:30.4mΩ
- Advanced Trench Technology
- High Power and current handing capability
- Lead free product is acquired
Applications
- Load Switch
- DC/DC converter for LCD display
Package Marking and Ordering Information
Device Marking
Device
Device Package
30P06G-AU AP30P06G-AU
PDFN5X6
Reel Size 13inch
Schematic Diagram
PDFN5X6
Tape width
- Quantity (PCS) 5000
ABSOLUTE MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TC =25℃) Continuous Drain Current (TC =100℃) Pulsed Drain Current (1) Single Pulsed Avalanche Energy (2) Drain Power Dissipation Thermal Resistance from Junction to Case(2)
Thermal Resistance from Junction to Ambient
Junction Temperature Storage Temperature
Symbol VDS VGS ID ID IDM EAS PD RθJC RθJA TJ TSTG
Value -60 ±20 -26 -18 -104 196 40.5 3.7 60 175
-55~ +175
Unit V V A A A m J W
℃/W ℃/W
℃ ℃

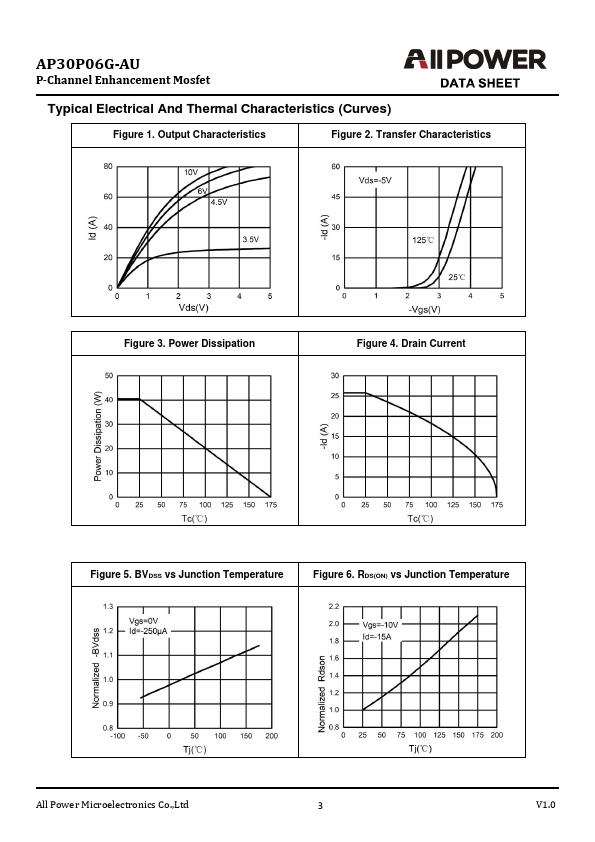

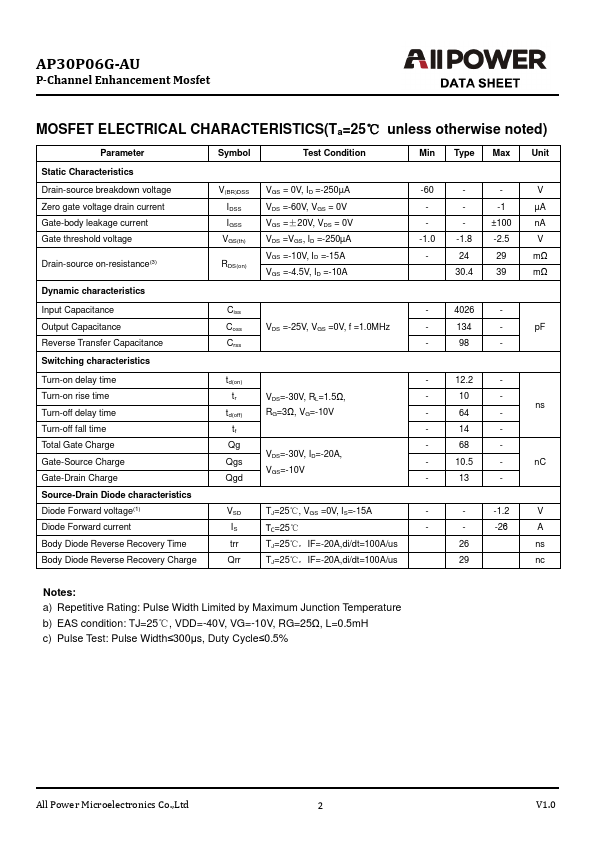

All Power...
