RV24AF-10-15F-B5K, RV24AF-10-15F-A10K Datasheet - ALPHA

RV24AF-10-15F-B5K, RV24AF-10-15F-A10K, 24mm D-Shaft Potentiometer

POTENTIOMETERS 24mm Rotary Type, Metal Shaft Series Application TV/Video, Audio, Home appliance, Industrial control .
3/8’’x0.

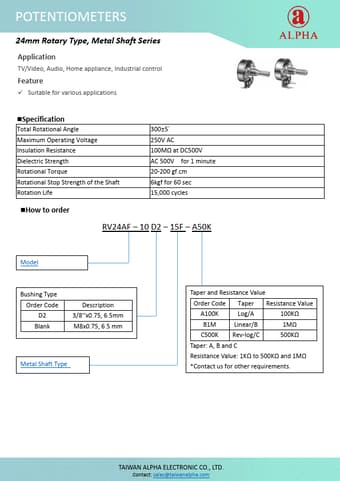

datasheet Preview Page 1 from Datasheet4u.com

RV24AF-10-15F-A10K-ALPHA.pdf

RV24AF-10-15F-B5K Datasheet Preview — This datasheet PDF includes multiple part numbers: RV24AF-10-15F-B5K, RV24AF-10-15F-A10K. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RV24AF-10-15F-B5K, RV24AF-10-15F-A10K

Manufacturer:

ALPHA

File Size:

628.83 KB

Description:

24mm D-Shaft Potentiometer

Note:

This datasheet PDF includes multiple part numbers: RV24AF-10-15F-B5K, RV24AF-10-15F-A10K.
Please refer to the document for exact specifications by model.

Applications

* Specification Total Rotational Angle Maximum Operating Voltage Insulation Resistance Dielectric Strength Rotational Torque Rotational Stop Strength of the Shaft Rotation Life 300±5 250V AC 100MΩ at DC500V AC 500V for 1 minute 20-200 gf. cm 6kgf for 60 sec 15,000 cycles
* How to order RV24
