ATA2188

Optical Mouse Sensor IC

ATA2188 Features

* Single 5.0 volt power supply Low operation current On chip LED drive TR 6MHz/12MHz selectable internal oscillator included (No additional OSC needed) PS/2 interface included (No additional MCU needed) Complete 2-D motion sensor Eye protection function included (ATA2188E) High speed motion detection

ATA2188 General Description

The ATA2188 is an optical sensor with capability of replacing current track ball mouse of computer system. How the most common optical sensor for mouse works today is: The sensor captures "snapshots" of the work surface at 1,700 times per second, calculates ±3-pixel movement per frame, and produce 5.

ATA2188 Datasheet (273.41 KB)

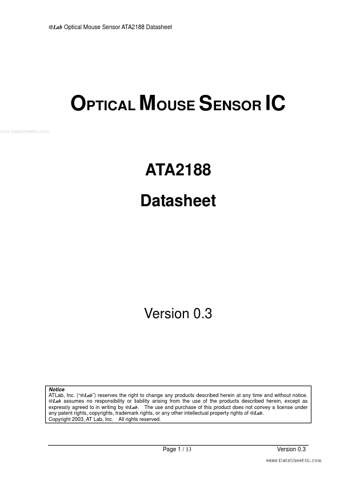

Preview of ATA2188 PDF

Datasheet Details

Part number:

ATA2188

Manufacturer:

ALab

File Size:

273.41 KB

Description:

Optical mouse sensor ic.
@Lab Optical Mouse Sensor ATA2188 Datasheet OPTICAL MOUSE SENSOR IC www.DataSheet4U.com ATA2188 Datasheet Version 0.3 Notice ATLab, Inc. (“@Lab”) .
