S2067 - DUAL SERIAL BACKPLANE DEVICE

Product Overview

📥 Download Datasheet

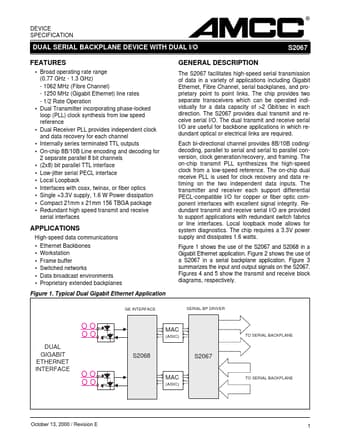

S2067 DUAL SERIAL BACKPLANE DEVICE by AMCC - Datasheet Preview — Datasheet preview – S2067

Datasheet Details

Part number	S2067
Manufacturer	AMCC
File Size	306.24 KB
Description	DUAL SERIAL BACKPLANE DEVICE
Datasheet	S2067 Datasheet
Additional preview pages of the S2067 datasheet.

Product details

Features

Broad operating rate range (0.77 GHz - 1.3 GHz) - 1062 MHz (Fibre Channel) - 1250 MHz (Gigabit Ethernet) line rates - 1/2 Rate Operation.
Dual Transmitter incorporating phase-locked loop (PLL) clock synthesis from low speed reference.
Dual Receiver PLL provides independent clock and data recovery for each channel.
Internally series terminated TTL outputs.
On-chip 8B/10B Line encoding and decoding for 2 separate parallel 8 bit channels.
(2x8).
