S4405

Bicmos PLL Clock Generators

S4405 Features

* Generates six clock outputs from 20 MHz to 80 MHz (HFOUT operates from 10 MHz to 40 MHz)

* Allows PECL or TTL reference input

* Provides differential PECL output at up to 160 MHz

* 21 selectable phase/frequency relationships for the clock outputs

* Compensat

S4405 General Description

The S4405 BiCMOS clock generators allow the user to generate multiphase TTL clocks in the 10

*80 MHz range with less than 400 ps of skew. Use of a simple off-chip filter allows an entire 160

*320 MHz phaselocked loop (PLL) to be implemented on-chip. Divideby-two and times-two outputs a.

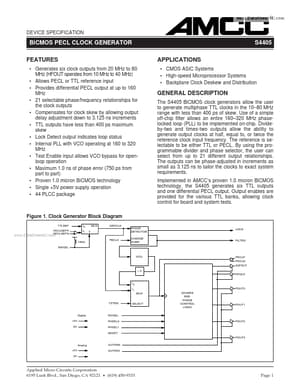

S4405 Datasheet (134.06 KB)

S4405 Datasheet Preview — Preview of S4405 PDF

Datasheet Details

Part number:

S4405

Manufacturer:

AMCC

File Size:

134.06 KB

Description:

Bicmos pll clock generators.
