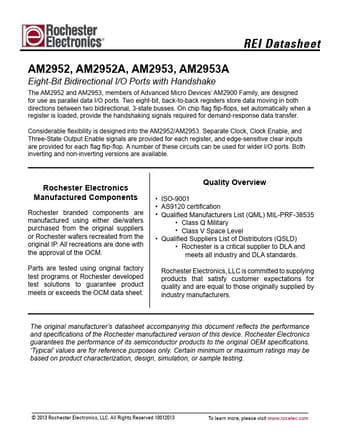

REI Datasheet
AM2952, AM2952A, AM2953, AM2953A
Eight-Bit Bidirectional I/O Ports with Handshake
The AM2952 and AM2953, members of Advanced Micro Devices’ AM2900 Family, are designed for use as parallel data I/O ports. Two eight-bit, back-to-back registers store data moving in both directions between two bidirectional, 3-state busses. On chip flag flip-flops, set automatically when a register is loaded, provide the handshaking signals required for demand-response data transfer.
Considerable flexibility is designed into the AM2952/AM2953. Separate Clock, Clock Enable, and Three-State Output Enable signals are provided for each register, and edge-sensitive clear inputs are provided for each flag flip-flop. A number of these circuits can be used for wider I/O ports.
