AM29BDS643D Datasheet - AMD

AM29BDS643D Burst Mode Flash Memory

The Am29BDS643 is a 64 Mbit, 1.8 Volt-only, simultaneous Read/Write, Burst Mode Flash memory device, organized as 4,194,304 words of 16 bits each. This device uses a single VCC of 1.7 to 1.9 V to read, program, and erase the memory array. A 12.0-volt V PP may be used for faster program performance i.

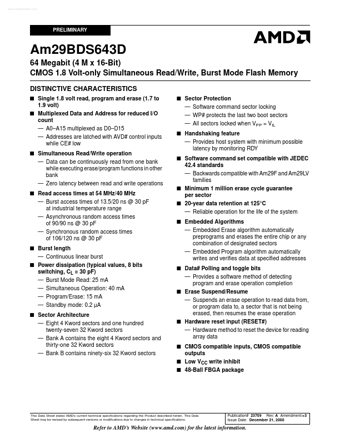

www.DataSheet4U.com PRELIMINARY Am29BDS643D 64 Megabit (4 M x 16-Bit) CMOS 1.8 Volt-only Simultaneous Read/Write, Burst Mode Flash Memory DISTINCTIVE CHARACTERISTICS s Single 1.8 volt read, program and erase (1.7 to 1.9 volt) s Multiplexed Data and Address for reduced I/O count A0 A15 multiplexed as D0 D15 Addresses are latched with AVD# control inputs while CE# low s Simultaneous Read/Write operation Data can be continuously read from one bank whi.

AM29BDS643D Features

* When addresses have been stable for a specified amount of time, the device enters the automatic sleep mode. The system can also place the device into the standby mode . Power consumption is greatly reduced in both modes. Simultaneous Read/Write Operations with Zero Latency The Simultaneous Read/Wr

AM29BDS643D Datasheet (681.30 KB)

Preview of AM29BDS643D PDF
AM29BDS643D Datasheet Preview Page 2 AM29BDS643D Datasheet Preview Page 3

Datasheet Details

Part number:

AM29BDS643D

Manufacturer:

AMD

File Size:

681.30 KB

Description:

Burst mode flash memory.
