AM29LV641G

Uniform Sector Flash Memory

AM29LV641G Features

* Hardware features

* Hardware reset input (RESET#): resets device for new operation

* WP# input: protects first or last 32 Kword sector regardless of sector protection settings (LV641GH/L only)

* ACC input: Accelerates programming time for higher throughput during system

AM29LV641G General Description

The Am29LV641G are 64 Mbit, 3.0 volt (3.0 V to 3.6 V) single power supply flash memory devices organized as 4,194,304 words. Data appears on DQ15

*DQ0. These devices are designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 volt VPP is not required for progr.

AM29LV641G Datasheet (1.15 MB)

Preview of AM29LV641G PDF

Datasheet Details

Part number:

AM29LV641G

Manufacturer:

AMD

File Size:

1.15 MB

Description:

Uniform sector flash memory.

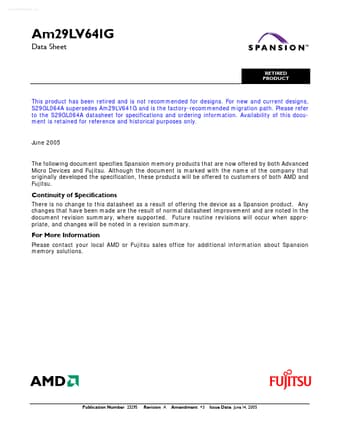

www.DataSheet4U.com Am29LV641G Data Sheet RETIRED PRODUCT This product has been retired and is not recommended for designs. For new and current desi.
