AM50DL9608G

Simultaneous Operation Flash Memories

AM50DL9608G Features

* Power supply voltage of 2.7 to 3.3 volt

* High performance

* Flash access time as fast as 70 ns

* Pseudo SRAM access time as fast as 55 ns

* Access time as fast as 70 ns

* Program time: 4 µs/word typical utilizing Accelerate function

* Ultra low power c

AM50DL9608G General Description

The Am50DL9608G consists of two flash memory devices (one 64-Mbit Am29DL640G and one 32-Mbit Am29DL320G), and one 8 Mbit pseudo SRAM device. Bottom boot configuration is shown in the following table. Bank Bank 1 Bank 2 Bank 3 Bank 4 Megabits 4 Mb 12 Mb 12 Mb 4 Mb Sector Sizes Eight 32 Kword Twenty-f.

AM50DL9608G Datasheet (0.98 MB)

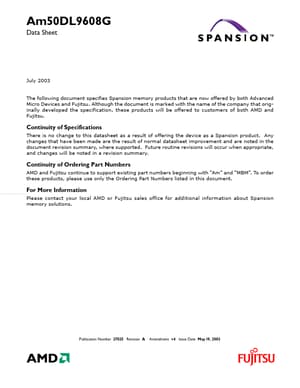

Preview of AM50DL9608G PDF

Datasheet Details

Part number:

AM50DL9608G

Manufacturer:

AMD

File Size:

0.98 MB

Description:

Simultaneous operation flash memories.
Am50DL9608G Data Sheet July 2003 The following document specifies Spansion memory products that are now offered by both Advanced Micro Devices and Fu.
