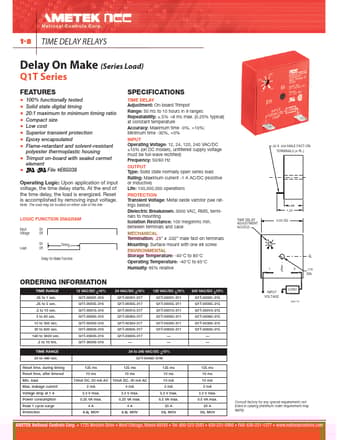

1-8
TIME DELAY RELAYS
Delay On Make (Series Load)
Q1T Series
FEATURES
● ● ● ● ● ● ● ●
100% functionally tested Solid state digital timing 20:1 maximum to minimum timing ratio Compact size Low cost Superior transient protection Epoxy encapsulated Flame-retardant and solvent-resistant polyester thermoplastic housing ● Trimpot on-board with sealed cermet element ● File #E65038 Operating Logic: Upon application of input voltage, the time delay starts. At the end of the time delay, the load is energized. Reset is accomplished by removing input voltage.
Note: The load may be located on either side of the line
SPECIFICATIONS
TIME DELAY Adjustment: On-board Trimpot Range: 50 ms to 10 hours in 9 ranges Repeatability: ±.5% +8 ms max. (0.
Q1T-00001-316 Datasheet
