Q1T-36000-341, Q1T-00001-341 - TIME DELAY CUBE RELAYS

Datasheet Details

Part number	Q1T-36000-341, Q1T-00001-341
Manufacturer	AMETEK
File Size	434.09 KB
Description	TIME DELAY CUBE RELAYS
Datasheet	Q1T-00001-341-AMETEK.pdf
Note	This datasheet PDF includes multiple part numbers: Q1T-36000-341, Q1T-00001-341. Please refer to the document for exact specifications by model.

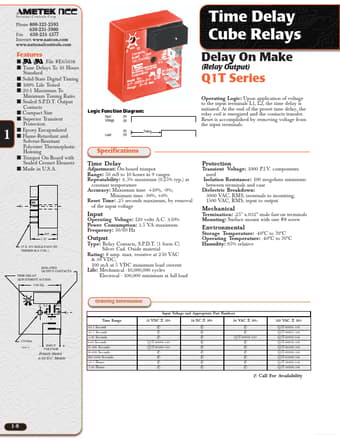

R 1 File #E65038 Time Delays To 10 Hours Standard Solid-State Digital Timing 100% Life Tested 20:1 Maximum To Minimum Timing Ratio Sealed S. P. D. T. Output Contacts Compact Size Superior Transient Protection Epoxy Encapsulated Flame-Retardant and Solvent-Resistant Polyester Thermoplastic Housing Trimpot On-Board with Sealed Cermet Element Made in U. S. A. C R Q1T Series Logic Function Diagram: Input Voltage On Off On Off Timing Operating Logic: Upon.
