AMIS-42673 Datasheet - AMI SEMICONDUCTOR

AMIS-42673 - High-Speed CAN Transceiver

6.2.1.

Pin Out (top view) Data Sheet TxD GND VCC RxD 1 8 V33 CANH CANL VREF AMIS42673 Figure 3: Pin Configuration 2 3 4 7 6 5 PC20071003.1 6.2.2.

Pin Description Table 2: Pin Out Pin Name 1 TxD 2 GND 3 VCC 4 RxD 5 VREF 6 CANL 7 CANH 8 V33 Description Transmit data input; low input → domina

AMIS-42673 High Speed CAN Transceiver For Long Networks 1.0 Introduction Data Sheet The AMIS-42673 CAN transceiver is the interface between a controller area network (CAN) protocol controller and the physical bus.

It may be used in both 12V and 24V systems.

The digital interface level is powered from a 3.3V supply providing true I/O voltage levels for 3.3V CAN controllers.

The transceiver provides differential transmit capability to the bus and differential receive capability to the CAN contro

AMIS-42673 Features

* True 3,3V or 5,0V logic level interface Fully compatible with the “ISO 11898-2” standard Wide range of bus communication speed (0 up to 1Mbit/s) Allows low transmit data rate in ne

AMIS-42673_AMISEMICONDUCTOR.pdf

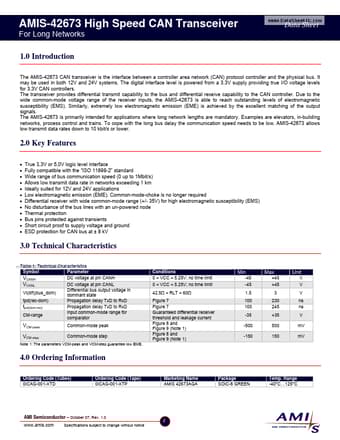

Preview of AMIS-42673 PDF
