AN24

CMOS Gate Array

AN24 General Description

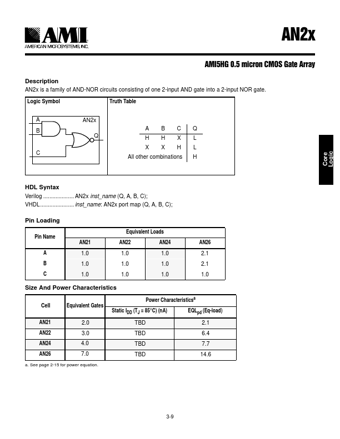

AN2x is a family of AND-NOR circuits consisting of one 2-input AND gate into a 2-input NOR gate. Logic Symbol Truth Table A AN2x B Q A B CQ HHX L XXHL C All other combinations H HDL Syntax Verilog AN2x inst_name (Q, A, B, C); VHDL inst_name: AN2x port map (Q, A, B, C); Pin Loading Pin Name A.

AN24 Datasheet (24.57 KB)

Preview of AN24 PDF

Datasheet Details

Part number:

AN24

Manufacturer:

AMI

File Size:

24.57 KB

Description:

Cmos gate array.
