AN74 CMOS Gate Array

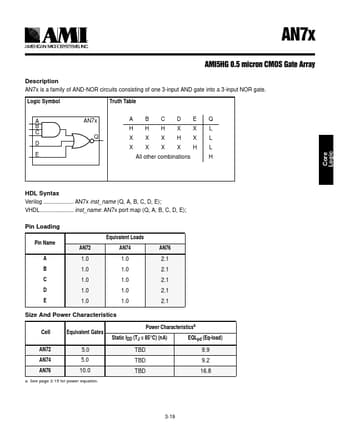

AN7x is a family of AND-NOR circuits consisting of one 3-input AND gate into a 3-input NOR gate. Logic Symbol Truth Table A AN7x ABCDEQ B HHHXX L C Q XXXHXL D XXXXHL E All other combinations H Core Logic HDL Syntax Verilog AN7x inst_name (Q, A, B, C, D, E); VHDL inst_name: AN7x port map.

AN72-AMI.pdf

AN74 Datasheet Preview — This datasheet PDF includes multiple part numbers: AN74, AN72. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AN74, AN72

Manufacturer:

AMI

File Size:

24.52 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: AN74, AN72.
Please refer to the document for exact specifications by model.
