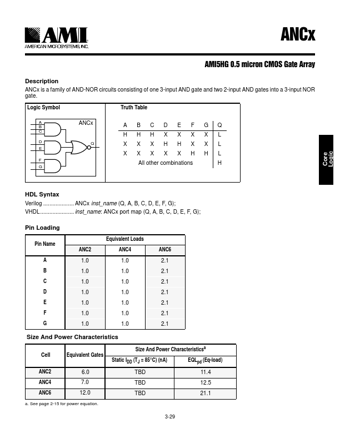

ANC4, ANC2, CMOS Gate Array
ANCx is a family of AND-NOR circuits consisting of one 3-input AND gate and two 2-input AND gates into a 3-input NOR gate.
Logic Symbol Truth Table A B ANCx A BCDE FGQ C HHHXXXX L D Q XXXHHXX L E X X X X XHH L F All other combinations H G Core Logic HDL Syntax Verilog ANCx inst_name (Q
