BR04 - CMOS Gate Array

This page provides the datasheet information for the BR04, a member of the BR02 CMOS Gate Array family.

Datasheet Summary

Description

BR0x is a family of non-inverting bus receivers with a single output to be used as the output of tristate busses.

📥 Download Datasheet

Datasheet preview – BR04

Datasheet Details

Part number BR04
Manufacturer AMI
File Size 23.79 KB
Description CMOS Gate Array
Datasheet download datasheet BR04 Datasheet
Additional preview pages of the BR04 datasheet.

📁 Similar Datasheet

Other Datasheets by AMI
  • BR02 - CMOS Gate Array
  • BR06 - CMOS Gate Array

Full PDF Text Transcription

Click to expand full text

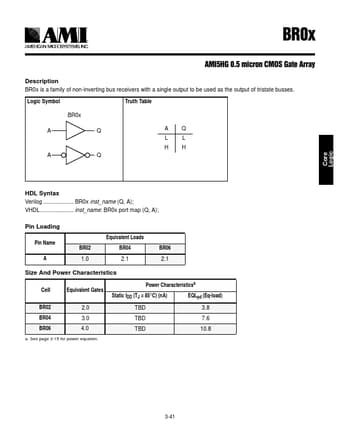

Core Logic %5[ ® $0,+*  PLFURQ &026 *DWH $UUD Description BR0x is a family of non-inverting bus receivers with a single output to be used as the output of tristate busses. Logic Symbol Truth Table BR0x AQ AQ AQ LL HH HDL Syntax Verilog .................... BR0x inst_name (Q, A); VHDL...................... inst_name: BR0x port map (Q, A); Pin Loading Pin Name A BR02 1.0 Equivalent Loads BR04 2.1 BR06 2.1 Size And Power Characteristics Power Characteristicsa Cell Equivalent Gates Static IDD (TJ = 85°C) (nA) EQLpd (Eq-load) BR02 2.0 TBD 3.8 BR04 3.0 TBD 7.6 BR06 4.0 TBD 10.8 a. See page 2-15 for power equation. 3-41 %5[ $0,+*  PLFURQ &026 *DWH $UUD Propagation Delays (ns) Conditions: TJ = 25°C, VDD = 5.
