IID4

CMOS Gate Array

IID4 General Description

IIDx is a family of non-inverting clock drivers with a single output. Logic Symbol Truth Table IIDx AQ AQ AQ LL HH HDL Syntax Verilog IIDx inst_name (Q, A); VHDL inst_name: IIDx port map (Q, A); Pin Loading Pin Name A IID1 1.0 Equivalent Loads IID2 IID3 IID4 1.0 2.1 2.1 Size And Power Char.

IID4 Datasheet (24.07 KB)

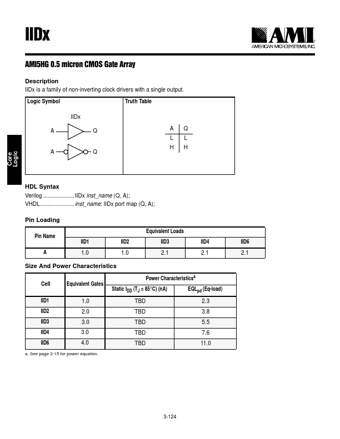

Preview of IID4 PDF

Datasheet Details

Part number:

IID4

Manufacturer:

AMI

File Size:

24.07 KB

Description:

Cmos gate array.
