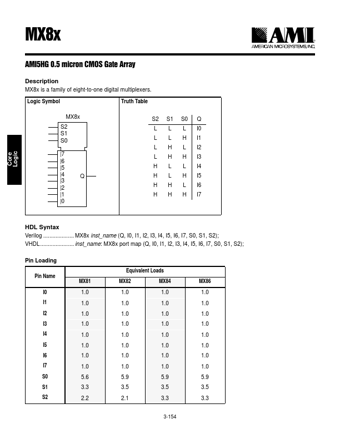

MX81 - CMOS Gate Array
MX8x is a family of eight-to-one digital multiplexers.
Logic Symbol Truth Table MX8x S2 S1 S0 |7 |6 |5 |4 Q |3 |2 |1 |0 S2 S1 S0 Q L L L I0 L L H I1 L H L I2 L H H I3 H L L I4 H L H I5 H H L I6 H H H I7 HDL Syntax Verilog MX8x inst_name (Q, I0, I1, I2, I3, I4, I5, I6, I7, S0, S1, S2); VHDL ins
