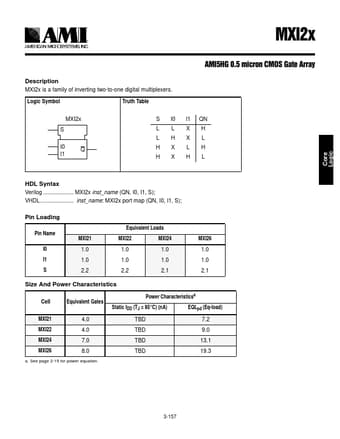

MXI21
Description
MXI2x is a family of inverting two-to-one digital multiplexers.
Logic Symbol
Truth Table
$0,+- PLFURQ &026
- DWH $UUD
MXI2x S
I0 Q I1
S I0 I1 QN L LXH L HX L HX L H HXHL
HDL Syntax Verilog MXI2x inst_name (QN, I0, I1, S); VHDL inst_name: MXI2x port map (QN, I0, I1, S);
Pin Loading
Pin Name
I0 I1 S
MXI21 1.0 1.0 2.2
Equivalent Loads
MXI22
MXI24
1.0 1.0
1.0 1.0
2.2 2.1
MXI26 1.0 1.0 2.1
Size And Power Characteristics
Cell MXI21
Equivalent Gates 4.0
Power Characteristicsa
Static IDD (TJ = 85°C) (n A)
EQLpd (Eq-load)
MXI22 MXI24 MXI26
4.0 7.0 8.0
TBD TBD TBD
9.0 13.1 19.3 a. See page 2-15 for power equation.
3-157
Core Logic
0;,[
®
$0,+- PLFURQ &026
- DWH $UUD
Propagation Delays (ns)
Conditions: TJ = 25°C, VDD = 5.0V, Typical...
