A42L2604 Datasheet - AMIC Technology

A42L2604 - 4M X 4 CMOS DYNAMIC RAM

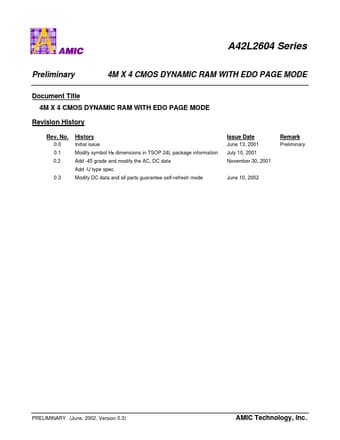

A42L2604 Series Preliminary Document Title 4M X 4 CMOS DYNAMIC RAM WITH EDO PAGE MODE Revision History Rev.

No.

0.0 0.1 0.2 0.3 4M X 4 CMOS DYNAMIC RAM WITH EDO PAGE MODE History Initial issue Modify symbol HE dimensions in TSOP 24L package information Add -45 grade and modify the AC, DC data Add -U type spec.

Modify DC data and all parts guarantee self-refresh mode Issue Date June 13, 2001 July 10, 2001 November 30, 2001 June 10, 2002 Remark Preliminary PRELIMINARY (June, 2002, Version 0.3

A42L2604 Features

* n Organization: 4,194,304 words X 4 bits n Part Identification - A42L2604 (2K Ref.) n Single 3.3V power supply/built-in VBB generator n Low power consumption - Operating: 80mA (-45 max) - Standby: 1.0mA (TTL), 1.5mA (CMOS), 350µA (Self-refresh current) n High speed - 45/50 ns RAS access time - 20/22

A42L2604_AMICTechnology.pdf

Preview of A42L2604 PDF
A42L2604 Datasheet Preview Page 2 A42L2604 Datasheet Preview Page 3

Datasheet Details

Part number:

A42L2604

Manufacturer:

AMIC Technology

File Size:

259.60 KB

Description:

4m x 4 cmos dynamic ram.
