A49LF040 - 4 Mbit CMOS 3.3Volt-only Low Pin Count Flash Memory

The A49LF040 flash memory device is designed to be readcompatible with the Intel Low Pin Count (LPC) Interface Specification 1.1.

This device is designed to use a single low voltage, range from 3.0 Volt to 3.6 Volt power supply to perform in-system or off-system read and write operations.

It provide

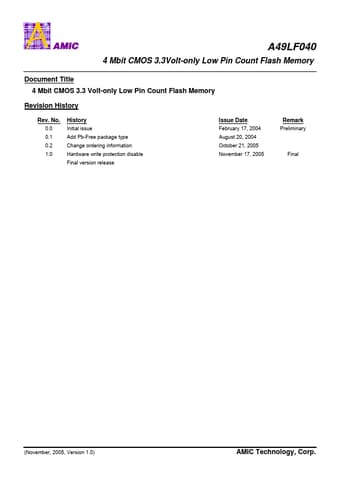

A49LF040 4 Mbit CMOS 3.3Volt-only Low Pin Count Flash Memory Document Title 4 Mbit CMOS 3.3 Volt-only Low Pin Count Flash Memory Revision History Rev.

No.

0.0 0.1 0.2 1.0 History Initial issue Add Pb-Free package type Change ordering information Hardware write protection disable Final version release Issue Date February 17, 2004 August 20, 2004 October 21, 2005 November 17, 2005 Remark Preliminary Final (November, 2005, Version 1.0) AMIC Technology, Corp.

A49LF040 4 Mbit CMOS 3.3Volt-on

A49LF040 Features

* Single Power Supply Operation - Low voltage range: 3.0 V - 3.6 V for Read and Write Operations

* Standard Intel Low Pin Count Interface - Read compatible to Intel® Low Pin Count (LPC) interface

* Memory Configuration - 512K x 8 (4 Mbit)

* Block Architecture - 4Mbit:
