A29010B Datasheet - AMIC

Uniform Sector Flash Memory

A29010B Features

* 5.0V ± 10% for read and write operations

* Access times: - 55ns (max.)

* Current: - 20mA typical active read current - 30mA typical program/erase current - 6μA typical CMOS standby

* Flexible sector architecture - 32 KbyteX4 sectors - Any combination of sectors can

A29010B General Description

The A29010B is a 5.0 volt-only Flash memory organized as 131,072 bytes of 8 bits each. The 128 Kbytes of data are further divided into four sectors for flexible sector erase capability. The 8 bits of data appear on I/O0 - I/O7 while the addresses are input on A0 to A16. The A29010B is offered in 32-.

A29010B Datasheet (341.48 KB)

Preview of A29010B PDF

Datasheet Details

Part number:

A29010B

Manufacturer:

AMIC

File Size:

341.48 KB

Description:

Uniform sector flash memory.

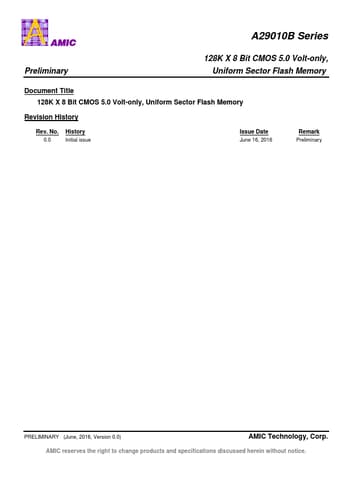

A29010B Series Preliminary 128K X 8 Bit CMOS 5.0 Volt-only, Uniform Sector Flash Memory Document Title 128K X 8 Bit CMOS 5.0 Volt-only, Uniform Sec.
