INR7D560K, INR5D180K Datasheet - AMOTECH

INR7D560K Zinc Oxide Varistors

2. Designation Method of Part Number 3. Application Notes(UL) 4. Type and Shape 5. Electrical Spectification 6. Reliability Testing Procesdures 7. Lead Free Profile 8. Making and Illustration 9. Materials Compnent 10. Box Pakage 11. Manufacturer and Place 12. Comment REV. DATE REV. NO. PAGE 2010. .

INR7D560K Features

* Wide operating voltage (V1mA : 18~1800V )

* Excellent clamp voltage ratio

* Fast response time to transient overvoltage

* Low stand by power

* Low leakage current

* Symmetric V-I Characteristics

* No derating up to 85℃ ambient temperature 5D/7D/10D/14D/20D D Series AM

INR5D180K-AMOTECH.pdf

This datasheet PDF includes multiple part numbers: INR7D560K, INR5D180K. Please refer to the document for exact specifications by model.

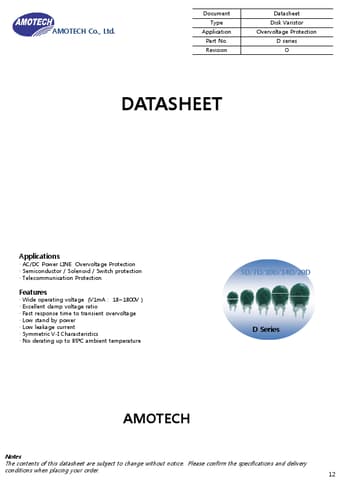

INR7D560K Datasheet Preview Page 2 INR7D560K Datasheet Preview Page 3

Datasheet Details

Part number:

INR7D560K, INR5D180K

Manufacturer:

AMOTECH

File Size:

1.02 MB

Description:

Zinc oxide varistors.

Note:

This datasheet PDF includes multiple part numbers: INR7D560K, INR5D180K.
Please refer to the document for exact specifications by model.
