AM-480272H3TMQW-T00H - LCD

Product Overview

AMP DISPLAY

Datasheet Details

Part number	AM-480272H3TMQW-T00H
Manufacturer	AMP DISPLAY
File Size	1.18 MB
Description	LCD
Datasheet	AM-480272H3TMQW-T00H Datasheet

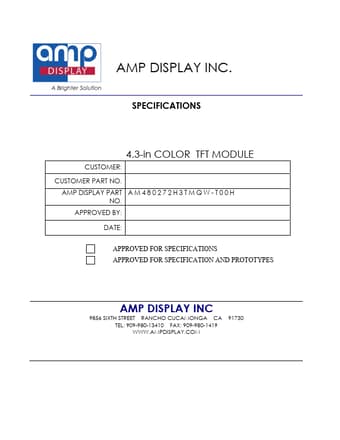

Additional preview pages of the AM-480272H3TMQW-T00H datasheet.

Product details

Description

Pin no 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 Symbol VBLVBLVBL+ VBL+ GND DISP GND YD XR YU XL B0 B1 B2 B3 B4 B5 B6 B7 G0 G1 G2 G3 G4 G5 G6 G7 R0 R1 R2 R3 R4 R5 R6 R7 HSYNC Function LED backlight Cathode LED backlight Cathode LED backlight Anode LED backlight Anode Ground Display ON/OFF Ground Touch Panel Bottom Signal in Y Axis Touch Panel Right Signal in X Axis Touch Panel Top Signal in Y Axis Touch Panel Left Signal in X Axis Blue Da

Features

(1) (2) (3) (4) (5) (6) Construction : a-Si TFT-LCD with driving system, White LED Backlight. LCD type : Transmissive , Normally White Number of the Colors : 16.7M colors (R,G,B 8 bit digital each) RGB Interface 54 pin. Anti-glare Touch panel. LCD Power Supply Voltage : 3.3V single power input, 2.
