ATA7601 Datasheet - ANADIGICS Inc

ATA7601 - 5.0V 10Gb/s TIA

The ANADIGICS ATA7601D1 is a 5V high-speed transimpedance amplifier (TIA) for 10 Gb/s applications available in bare die form and manufactured using an InGaP HBT process.

The device is used in conjunction with a photodetector to convert an optical signal into a differential voltage that must be AC

ATA7601 Features

* 10 Gb/s Differential Output TIA +5V Power Supply Low Group Delay Small Size: 0.85mm x 0.914mm 325mW (typ) power dissipation IIN VOUT VOUT GND VCC GND ATA7601 Preliminary Data Sheet - Rev 1 APPLICATIONS

* SONET OC-192 10 Gb/s DWDM 10 Gb/s Ethernet GND

ATA7601_ANADIGICSInc.pdf

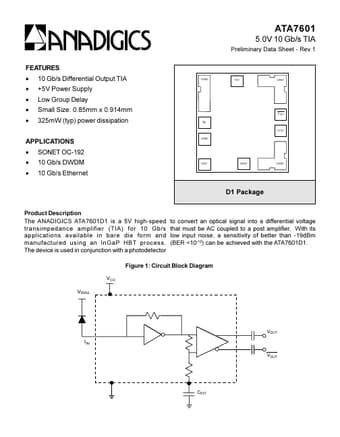

Preview of ATA7601 PDF
ATA7601 Datasheet Preview Page 2 ATA7601 Datasheet Preview Page 3

Datasheet Details

Part number:

ATA7601

Manufacturer:

ANADIGICS Inc

File Size:

194.59 KB

Description:

5.0v 10gb/s tia.
