ACD0900 Datasheet - ANADIGICS

ACD0900 - VHF/UHF CATV/TV Tuner

The ACD0900 MMIC is a high performance downconverter fabricated entirely in GaAs.

It is designed for use as the second conversion stage in double-conversion tuners and cable modems, downconverting 900 -1200 MHz RF inputs to a fixed IF of 35 - 150 MHz (depending on LO frequency).

The IC incorporates

ACD0900 Features

* Integrated Monolithic Downconverter 8 dB Noise Figure 10 dB Conversion Gain High Linearity Small Size Low Cost High Reliability RoHS-Compliant Package Option www.DataSheet4U.com S3 Package Modified 16 Pin SOIC PRODUCT

ACD0900_ANADIGICS.pdf

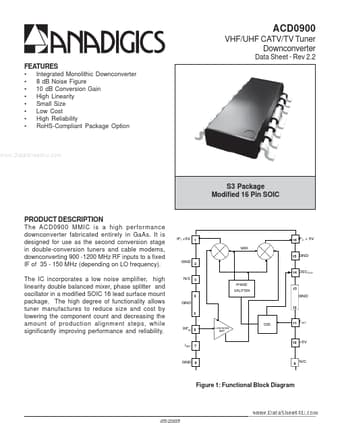

Preview of ACD0900 PDF
ACD0900 Datasheet Preview Page 2 ACD0900 Datasheet Preview Page 3

Datasheet Details

Part number:

ACD0900

Manufacturer:

ANADIGICS

File Size:

170.46 KB

Description:

Vhf/uhf catv/tv tuner.
