ATA121302 Datasheet, Amplifier, ANADIGICS

ATA121302 Features

  • Amplifier
  • 1.25 Gb/s Differential Output TIA
  • Automatic Gain Control
  • Single +5V Supply
  • 1100 MHz Bandwidth
  • -28 dBm typical sensitivity
  • On-

PDF File Details

Part number:

ATA121302

Manufacturer:

ANADIGICS

File Size:

199.42kb

Download:

📄 Datasheet

Description:

Transimpedance amplifier. The ANADIGICS ATA121302 is a +5V low noise transimpedance amplifier designed to be used in Gigabit Ethernet and Fiber Channel fiber o

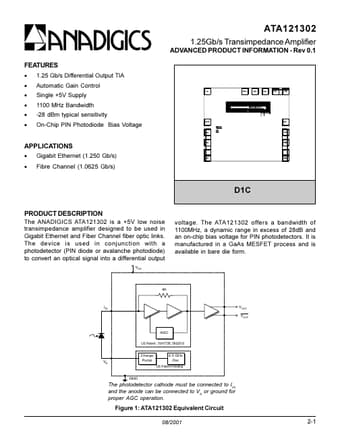

Datasheet Preview: ATA121302 📥 Download PDF (199.42kb)
Page 2 of ATA121302 Page 3 of ATA121302

ATA121302 Application

  • Applications
  • Gigabit Ethernet (1.250 Gb/s)
  • Fibre Channel (1.0625 Gb/s) ATA121302 1.25Gb/s Transimpedance Amplifier ADVANCED PRO

TAGS

ATA121302
TRANSIMPEDANCE
AMPLIFIER
ANADIGICS
