AWM6433 - 3.6GHz WiMAX Power Amplifier Module

The ANADIGICS AWM6433 WiMAX Power Amplifier is a high performance device that delivers exceptional linearity and efficiency at high levels of output power. Designed for portable or mobile applications in the 3.4-3.6 GHz band, it supports the IEEE 802.16e-2005 wireless standard, as well as the IEEE .

3.4 - 3.6 GHz WiMAX Power Amplifier Module InGaP HBT Technology 30 dB Gain < 3 % EVM at +22 dBm (+3.3 V Supply) 4 % EVM at +23 dBm (+3.3 V Supply) < 3 % EVM at +23 dBm (+4.2 V Supply) 4 % EVM at +24 dBm (+4.2 V Supply) High Efficiency Integrated 25 dB Attenuator Integrated Output Power Detector 50  Matched RF Ports for Reduced External Component Count 4.5 mm x 4.5 mm x 1.0 mm.

AWM6433 Features

* APPLICATIONS M35 Package 12 Pin 4.5 mm x 4.5 mm x 1.0 mm Surface Mount Module produces an increase in the maximum linear output power. The integrated detector can be used to monitor output power, and the integrated 25 dB step attenuator enables gain control. No external circuits are required for

AWM6433_ANADIGICS.pdf

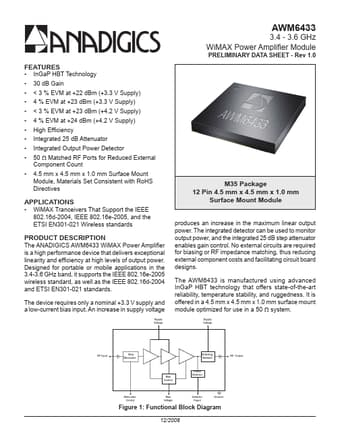

AWM6433 Datasheet Preview — Preview of AWM6433 PDF
