AAT2845 - Four-Channel Backlight Driver

AAT2845 Description

Four-Channel Backlight Driver with Dual LDOs General .
The AAT2845 is a highly integrated power solution for single-cell lithium-ion-based LCD display applications.

AAT2845 Features

* ChargePump™
* Input Voltage Range: 2.7V to 5.5V Four-Channel LED Driver:
* Tri-Mode Charge Pump
* Up to 20mA/Channel
* Easy Control with Single Wire Interface
* 16 Current Levels
* Four Low

AAT2845 Applications

* It includes a four-channel LED backlight driver and two integrated 200mA LDOs as additional power supplies for display and camera-related chipsets. The backlight driver is a low noise, constant frequency charge pump DC/DC converter that uses a tri-mode load switch (1X), fractional (1.5X), and doubl

📥 Download Datasheet

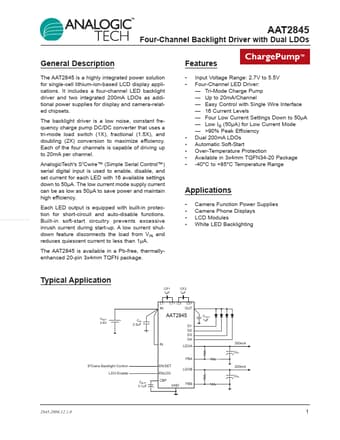

Preview of AAT2845 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2845
Manufacturer
ANALOGICTECH
File Size
606.18 KB
Datasheet
AAT2845_ANALOGICTECH.pdf
Description
Four-Channel Backlight Driver
