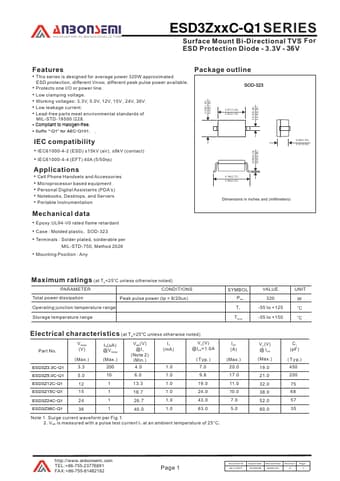

ESD3ZxxC-Q1 SERIES
Surface Mount Bi-Directional TVS For ESD Protection Diode - 3.3V - 36 V
Features
• This series is designed for average power 320W approximated
ESD protection, different VRWM, different peak pulse power available.
• Protects one I/O or power line. • Low clamping voltage. • Working voltages: 3.3V, 5.0V, 12V, 15V , 24V, 36V. • Low leakage current. • Lead-free parts meet environmental standards of
MIL-STD-19500 /228.
• Compliant to Halogen-free. • Suffix "-Q1" for AEC-Q101. .
0.055(1 .40 ) 0.0 47(1 .20 )
Package outline
0.071(1.80) 0.063(1.60)
0.016(0.40) 0.010(0.25)
0.008(0.20) 0.003(0.08 )
IEC compatibility
• IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) • IEC61000-4-4 (EFT) 40A (5/50ηs)
0.039(1.00) 0.031(0.
