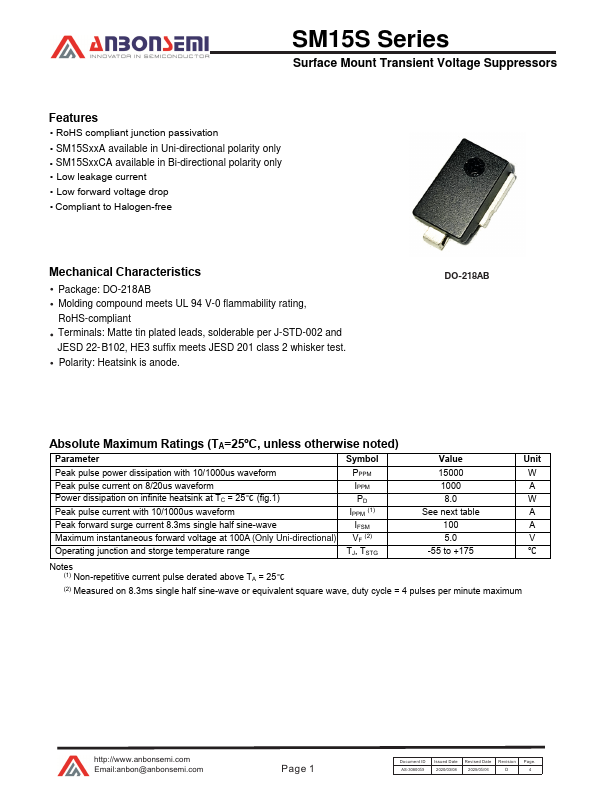

SM15S28CA
Features
- Ro HS pliant junction passivation
- SM15Sxx A available in Uni-directional polarity only
- SM15Sxx CA available in Bi-directional polarity only
- Low leakage current
- Low forward voltage drop
- pliant to Halogen-free
Mechanical Characteristics
Package: DO-218AB Molding pound meets UL 94 V-0 flammability rating, Ro HS-pliant Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102, HE3 suffix meets JESD 201 class 2 whisker test. Polarity: Heatsink is anode.
DO-218AB
Absolute Maximum Ratings (TA=25ºC, unless otherwise noted)
Parameter
Symbol
Value
Unit
Peak pulse power dissipation with 10/1000us waveform
PPPM
Peak pulse current on 8/20us waveform
IPPM

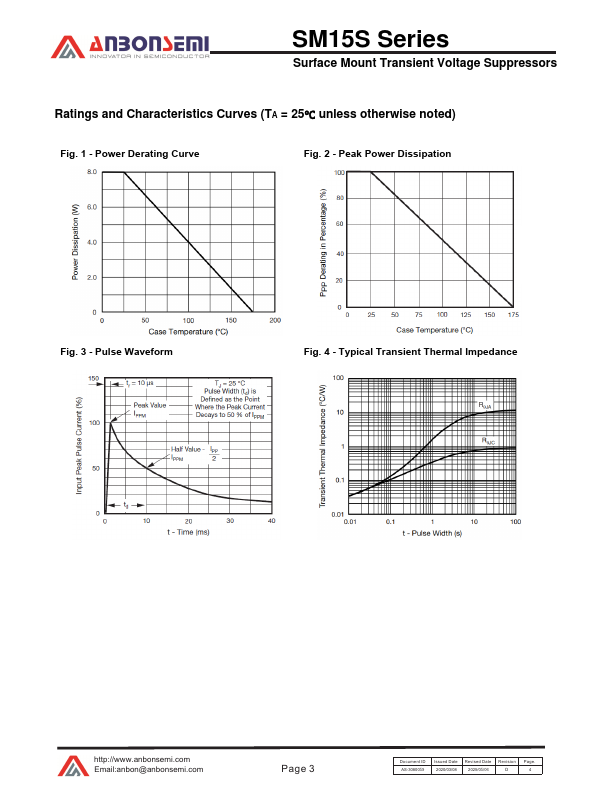

Power dissipation on infinite heatsink at TC = 25℃ (fig.1)
Peak pulse current with 10/1000us waveform
IPPM (1)
See next table
Peak forward surge current 8.3ms single half sine-wave
IFSM
Maximum instantaneous forward voltage at 100A (Only Uni-directional)...
