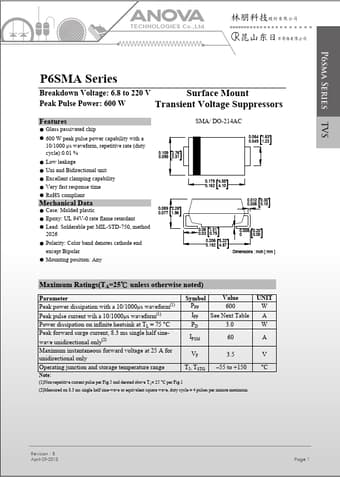

* ϥ Glass passivated chip ϥ 600 W peak pulse power capability with a 10/1000 ȝs waveform, repetitive rate (duty cycle):0.01 % ϥ Low leakage ϥ Uni and Bidirectional unit ϥ Excellent clamping capability ϥ Very fast response time ϥ RoHS compliant Mechanical Data ϥ Case: Molded plastic ϥ Epoxy: UL 94V-0 r
P6SMA100A Datasheet (572.68 KB)
P6SMA100A
ANOVA
572.68 KB
Surface mount transient voltage suppressors.
P6sma Series TVS
TECHNOLOGIES Co.,Ltd.
P6SMA Series
Breakdown Voltage: 6.8 to 220 V
Surface Mount
Peak Pulse Power: 600 W
Transient Voltage S.
