P6SMB15CA, P6SMB6.8A - Surface Mount Transient Voltage Suppressors

The P6SMB15CA by ANOVA is a Surface Mount Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	P6SMB15CA, P6SMB6.8A
Manufacturer	ANOVA
File Size	205.25 KB
Description	Surface Mount Transient Voltage Suppressors
Datasheet	P6SMB6.8A-ANOVA.pdf
Note	This datasheet PDF includes multiple part numbers: P6SMB15CA, P6SMB6.8A. Please refer to the document for exact specifications by model.

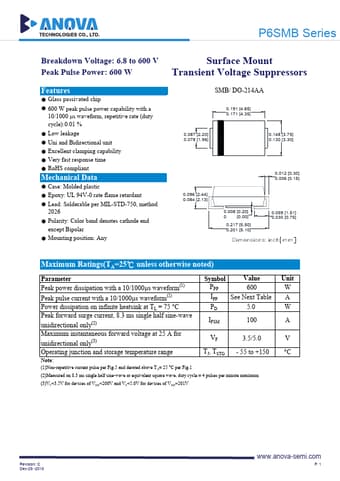

Additional preview pages of the P6SMB15CA datasheet.

Glass passivated chip.
600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %.
Low leakage.
Uni and Bidirectional unit.
Excellent clamping capability.
Very fast response time.
RoHS compliant Mechanical Data.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Solderable per MIL-STD-750, method 2026.
Polarity: Color band denotes cathode end except Bipolar.
Mounting position: Any.
