P6SMB36CA, P6SMB6.8A, Surface Mount Transient Voltage Suppressors

P6SMB Series Breakdown Voltage: 6.8 to 600 V Peak Pulse Power: 600 W .

P6SMB6.8A-ANOVA.pdf

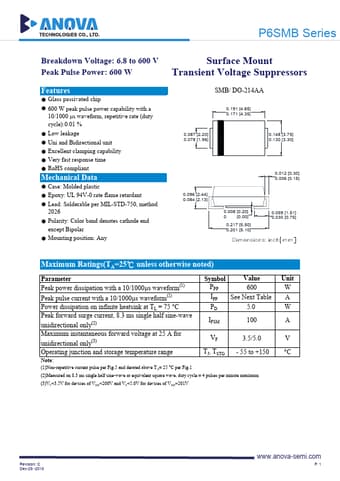

P6SMB36CA Datasheet Preview — This datasheet PDF includes multiple part numbers: P6SMB36CA, P6SMB6.8A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P6SMB36CA, P6SMB6.8A

Manufacturer:

ANOVA

File Size:

205.25 KB

Description:

Surface Mount Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: P6SMB36CA, P6SMB6.8A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip
* 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %
* Low leakage
* Uni and Bidirectional unit
* Excellent clamping capability
* Very fast response time
* RoHS compliant Mechanical Data
* Case: Mo
