SMA4751A, SMA4728A - Surface Mount Zener Diodes

📥 Download Datasheet

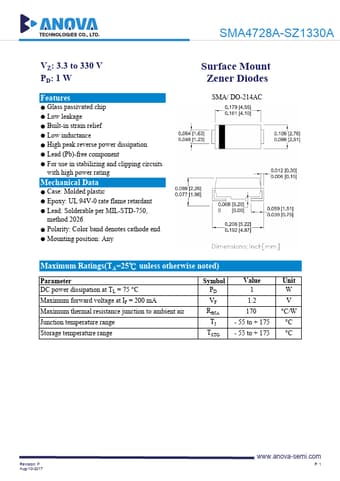

SMA4751A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMA4751A, SMA4728A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SMA4751A, SMA4728A
Manufacturer	ANOVA
File Size	207.48 KB
Description	Surface Mount Zener Diodes
Datasheet	SMA4728A-ANOVA.pdf
Note	This datasheet PDF includes multiple part numbers: SMA4751A, SMA4728A. Please refer to the document for exact specifications by model.

SMA4751A Product details

Features

Glass passivated chip.
Low leakage.
Built-in strain relief.
Low inductance.
High peak reverse power dissipation.
Lead (Pb)-free component.
For use in stabilizing and clipping circuits with high power rating Mechanical Data.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Solderable per MIL-STD-750, method 2026.
Polarity: Color band denotes cathode end.
Mounting position: Any Surface Mount Zener Diodes SMA/ DO-214AC.
