SML4755A, SML4728A Surface Mount Zener Diodes

SML4755A Description

SML4728A-SMZ1330A VZ: 3.3 to 330 V PD: 1 W .

SML4755A Features

* Glass passivated chip
* Low leakage
* Built-in strain relief
* Low inductance
* High peak reverse power dissipation
* Lead (Pb)-free component
* For use in stabilizing and clipping circuits with high power rating Mechanical Data
* Case: Molded plastic
* Epoxy: U

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SML4755A, SML4728A. Please refer to the document for exact specifications by model.

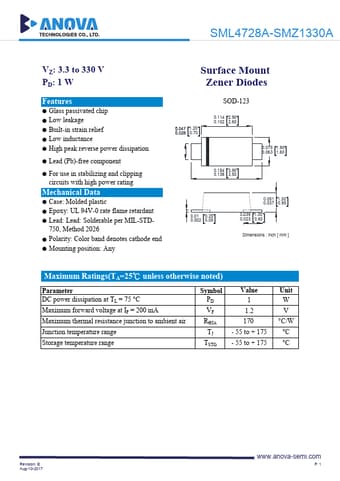

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SML4755A, SML4728A
Manufacturer
ANOVA
File Size
211.60 KB
Datasheet
SML4728A-ANOVA.pdf
Description
Surface Mount Zener Diodes
Note
This datasheet PDF includes multiple part numbers: SML4755A, SML4728A.
Please refer to the document for exact specifications by model.
