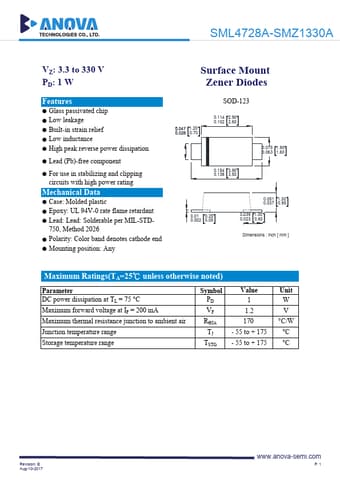

SML4728A-SMZ1330A
VZ: 3.3 to 330 V PD: 1 W
Features
● Glass passivated chip ● Low leakage ● Built-in strain relief ● Low inductance ● High peak reverse power dissipation
● Lead (Pb)-free component
● For use in stabilizing and clipping circuits with high power rating
Mechanical Data
● Case: Molded plastic ● Epoxy: UL 94V-0 rate flame retardant ● Lead: Lead: Solderable per MIL-STD-
750, Method 2026 ● Polarity: Color band denotes cathode end ● Mounting position: Any
Surface Mount Zener Diodes
SOD-123
[ ]1.20 0.70
[ ]0.114 2.90
0.102 2.60
[ ]0.075 1.90
0.063 1.60
[ ]0.154 3.90
0.138 3.50
[ ]0.01 0.25
0.002 0.05
[ ]0.051 1.30
0.037 0.95
[ ]0.039 1.00
0.023 0.
