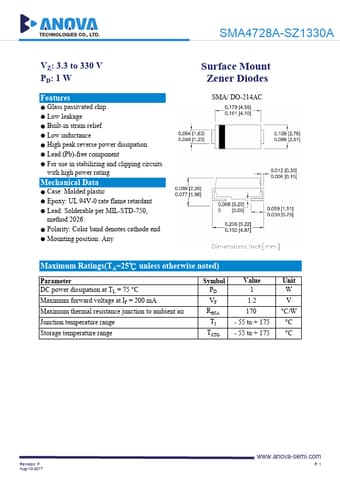

Part number:
SZ1250A
Manufacturer:
ANOVA
File Size:
196.07 KB
Description:
Surface mount zener diodes.
* Glass passivated chip
* Low leakage
* Built-in strain relief
* Low inductance
* High peak reverse power dissipation
* Lead (Pb)-free component
* For use in stabilizing and clipping circuits with high power rating Mechanical Data
* Case: Molded plastic
* Epoxy: U
SZ1250A
ANOVA
196.07 KB
Surface mount zener diodes.
