APA2010 Datasheet, Amplifier, ANPEC

APA2010 Features

• Amplifier
• Operating Voltage: 2.4V-5.5V
• High efficiency up to 90%
• Low Supply Current
    – I =2mA at V =5V DD DD
    – IDD=1.6mA at VDD

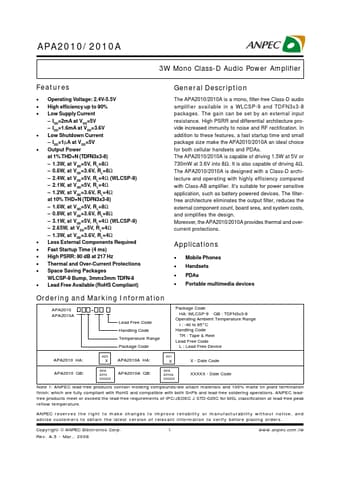

PDF File Details

Part number:

APA2010

Manufacturer:

ANPEC

File Size:

683.04kb

Download:

📄 Datasheet

Description:

3w mono class-d audio power amplifier. The APA2010/2010A is a mono, filter-free Class-D audio amplifier available in a WLCSP-9 and TDFN3x3-8 packages. The gain can be set b

APA2010 Application

• Applications
• Mobile Phones
• Handsets
• PDAs
• Portable multimedia devices Ordering and Marking Information APA2
