APA2607 6W Stereo Class-D Audio Power Amplifier

APA2607 Description

APA2607 6W Stereo Class-D Audio Power Amplifier .
The APA2607 is a stereo, high efficiency, Class-D audio amplifier available in a TQFN5x5-32 package.

APA2607 Features

* Operating Voltage: 8.0V-16.5V High Efficiency 90% at P O = 6W, 8 Ω Speaker, VDD = 12V Low Shutdown Current - IDD=5µA at VDD=16.5V Power Limit Function

APA2607 Applications

* LCD TVs 70 60 50 40 30 VDD=12V RL=8Ω+33µH fin=1kHz AUX-0025 AES-17(20kHz) Simplified Application Circuit LOUTP 20 Left Channel Speaker Left Channel Input LINP LINN LOUTN 10 0 0 1 2 APA2607 Right Channel Input RINN RINP ROUTN Right Channel Speaker 3 4 5 6 7 Output Power (W) 8 9

📥 Download Datasheet

Preview of APA2607 PDF

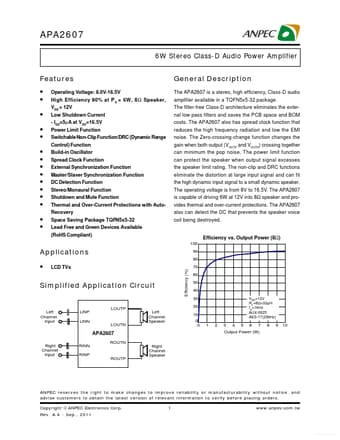

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APA2607
Manufacturer
ANPEC
File Size
595.47 KB
Datasheet
APA2607_ANPEC.pdf
Description
6W Stereo Class-D Audio Power Amplifier
