AD560X - 60V 5A ULTRA LOW VF TMOS Schottky

AD560X Description

AD560X 60V 5A ULTRA LOW VF TMOS Schottky Characteristics Summary Characteristics Values IF(AV) 5 VRRM 60 VF TYP @ 2A, TJ = 25℃ 0.44 Units A.

AD560X Features

* Reduced low forward voltage drop (VF) ; better efficiency and cooler operation.
* Reduced high temperature reverse leakage; Increased reliability against thermal runaway failure in high temperature operation.
* Softest, fast switching capability
* 150℃ Operating Junction Temperatu

AD560X Applications

* Device optimized for low forward voltage drop to suitable efficiency in general rectification applications.
* Boost Diode, Blocking Diode, Rectifier, Recirculating Diode Maximum Ratings Characteristics - ( TA = 25℃ unless otherwise specified ) Parameter Symbol Values Units DC Blocking Vol

📥 Download Datasheet

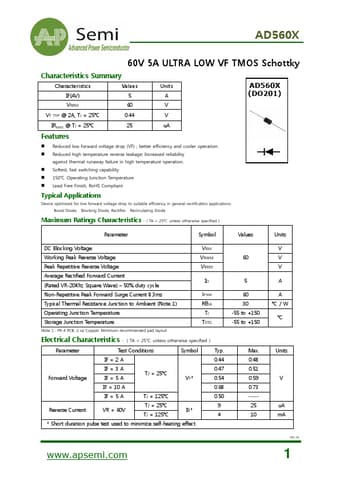

Preview of AD560X PDF
